| モデル番号: | TX-AP113 | 動作波長: | マイクロウェーブ |
|---|---|---|---|
| 構造形態: | 表面アンテナ | VSWR: | 1.5~2 |
| ベースアンテナ: | 高利得アンテナ | 次元性: | 2次元アンテナ |
| 仕様: | ゴム | 頻度: | GSM/GPRS/DTU |
| アンテナゲイン: | 3dBi | 偏光: | リニア |
| インピーダンス: | 50オーム | ラジエーター材料: | プリント基板+スプリング |
| プラスチック材料: | 腹筋 | ケーブルタイプ: | 1.37 |
| コネクタタイプ: | fIpex | ||
| ハイライト: | 4G Multi-Band Antenna,VSWR 1.5~2 Antenna,50 Ohm Antenna |
||

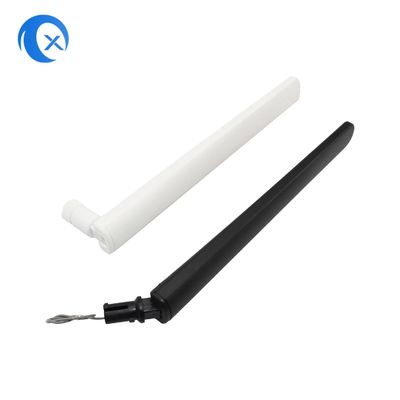

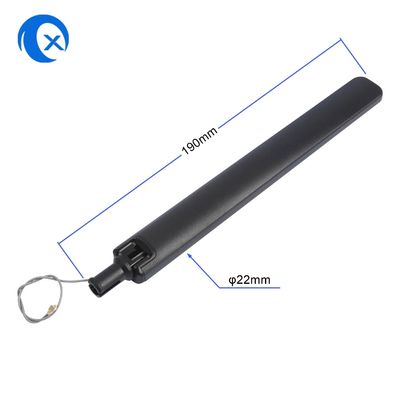

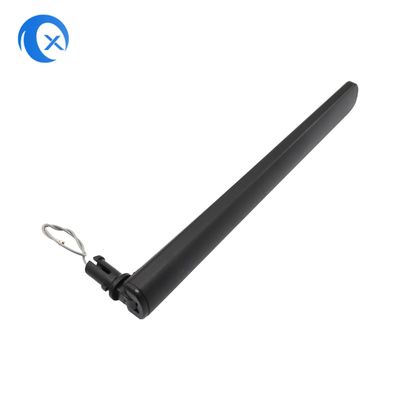

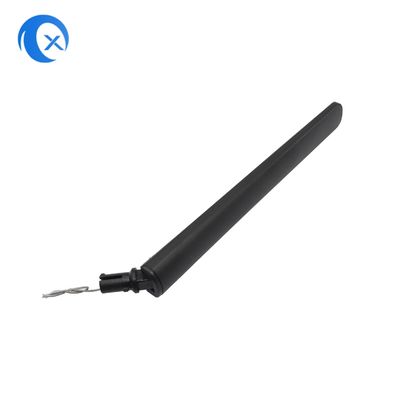

4G Multi-Band GSM/GPRS/DTU Antenna for Router with Flying Lead/Wire
| Frequency | GSM/GPRS/DTU |
|---|---|
| V.S.W.R | <= 2 |
| Antenna Gain | 3 dBi |
| Polarization | Linear |
| Impedance | 50 Ohm |
| Material of Radiator | PCB+Spring |
|---|---|
| Material of Plastic | ABS |
| Cable Type | 1.37 |

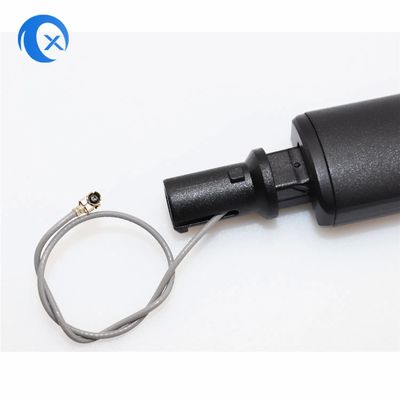

| Connector Type | fIpex |
| Operation Temperature | -20˚C ~ +60˚C |
|---|---|
| Storage Temperature | -40˚C ~ +80˚C |
Teng Xiang Electronics is an experienced manufacturer of RF products, specializing in antennas, RF coaxial cable assemblies, and RF connectors. We deliver innovative technologies and solutions for the wireless industry, including 5G, 4G (LTE), 3G, 2G, WiFi, ISM, IoT solutions, Iridium communications, and GPS/GLONASS/BeiDou frequencies.
With a focus on telecommunications, security, automotive, medical, and IoT markets, we provide customized solutions through in-house design, R&D, and manufacturing. Our team is committed to developing high-quality products while offering exceptional customer service.
