| 型番: | TX-AP204 | 方向性: | オムニダイレクトアンテナ |
|---|---|---|---|
| VSWR: | 2 | ベースアンテナ: | 高利得アンテナ |
| 操作の性質: | 送信アンテナ | 構造形態: | 表面アンテナ |
| 次元性: | 2次元アンテナ | 材料: | 腹筋 |
| 頻度: | 450〜470MHz | アンテナゲイン: | 2 dBi |
| 偏光: | リニア | インピーダンス: | 50オーム |
| ラジエーター材料: | プリント基板+スプリング | 動作温度: | -20℃〜+60℃ |
| 保管温度: | -40℃〜+80℃ | ||
| ハイライト: | DVB-T digital antenna with SMA plug,external HDTV antenna for digital video,SMA plug digital TV antenna |
||
| Frequency | 450-470MHz |
|---|---|
| V.S.W.R | <= 2 |
| Antenna Gain | 2 dBi |
| Polarization | Linear |
| Impedance | 50 Ohm |
| Material of Radiator | PCB+Spring |
|---|---|
| Material of Plastic | ABS |
| Cable Type | / |

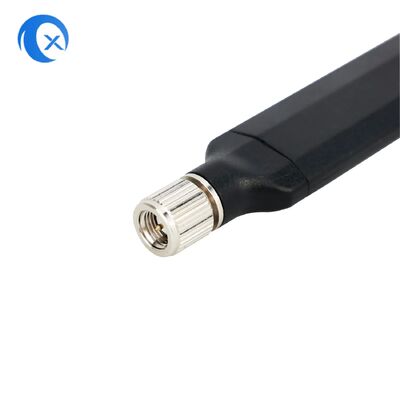

| Connector Type | SMA Plug |
| Operation Temperature | -20˚C ~ +60˚C |
|---|---|
| Storage Temperature | -40˚C ~ +80˚C |
Teng Xiang Electronics is an experienced manufacturer of RF products specializing in antennas, RF coaxial cable assemblies, and RF connectors. We deliver innovative technologies and solutions for the wireless industry, including 5G, 4G (LTE), 3G, 2G, WiFi, ISM, IoT solutions, Iridium communications, and GPS/GLONASS/BeiDou frequencies.
With expertise in telecommunications, security, automotive, medical, and IoT markets, we provide customized solutions through in-house design, R&D, and manufacturing. Our team is committed to developing high-quality products while delivering exceptional customer service.
