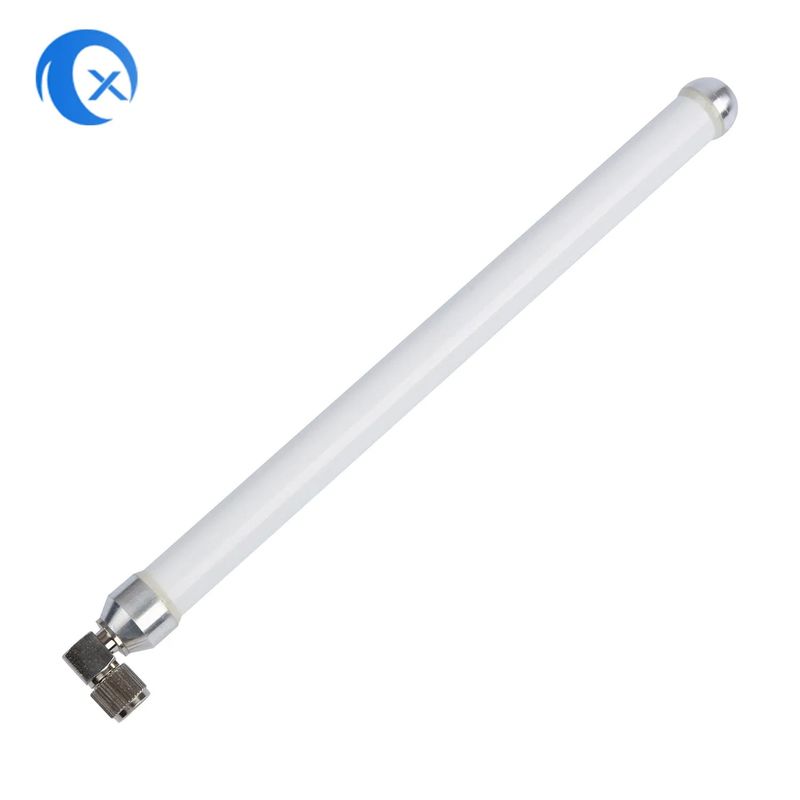

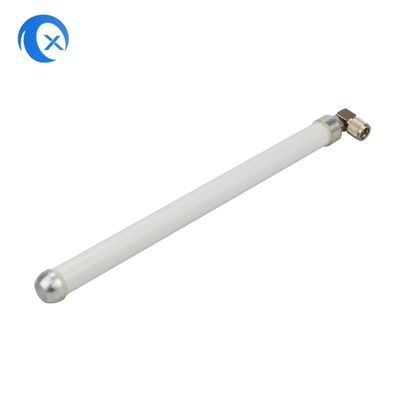

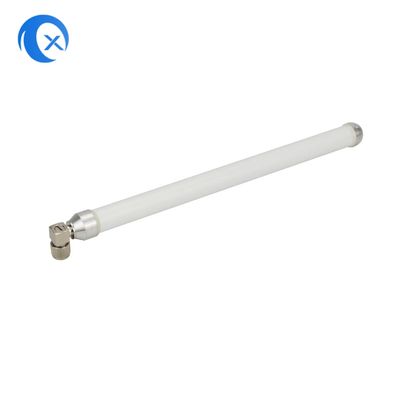

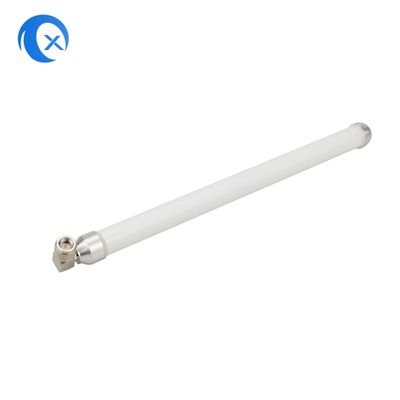

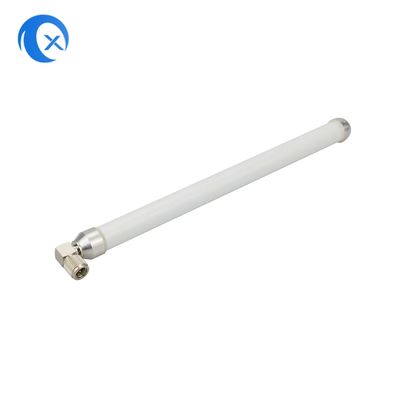

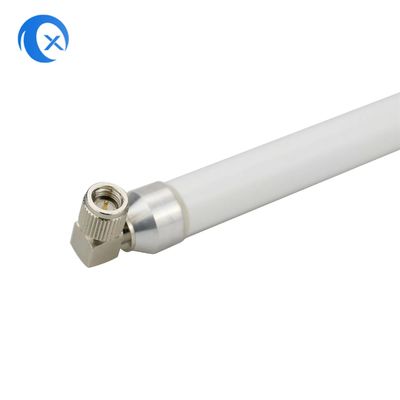

2.4GHz 5dBi Fiberglass Base Antenna with SMA Connector

認証
中国 Dongguan Tengxiang Electronics Co., Ltd. 認証
中国 Dongguan Tengxiang Electronics Co., Ltd. 認証
顧客の検討
ありがとう、ココヤシ!あなたのサービスは素晴らしく、あなたの商品の質は非常に商品、それほど感謝しますです!

—— ジーンPhilippe

こんにちはココヤシ、あなたのあなたの素晴らしい忍耐、あなたの専門知識、すぐに会う希望への感謝と働くことは非常に素晴らしいです。

—— Alaa Leheta

オンラインです

2.4GHz 5dBi Fiberglass Base Antenna with SMA Connector

2.4GHz 5dBi Fiberglass Base Antenna with SMA Connector
2.4GHz 5dBi Fiberglass Base Antenna with SMA Connector 2.4GHz 5dBi Fiberglass Base Antenna with SMA Connector 2.4GHz 5dBi Fiberglass Base Antenna with SMA Connector 2.4GHz 5dBi Fiberglass Base Antenna with SMA Connector 2.4GHz 5dBi Fiberglass Base Antenna with SMA Connector 2.4GHz 5dBi Fiberglass Base Antenna with SMA Connector

大画像 :  2.4GHz 5dBi Fiberglass Base Antenna with SMA Connector

商品の詳細: お支払配送条件:
最小注文数量: 100
価格: 8.9

2.4GHz 5dBi Fiberglass Base Antenna with SMA Connector

説明
モデル番号: TX-HG005 構造形態: 表面アンテナ
VSWR: 1.5~2 得: 5 DBI
寸法: 18*200 正味重量: 36g
材料: グラスファイバー 頻度: 2.4GHz
偏光: リニア インピーダンス: 50オーム
ラジエーター材料: 真鍮 コネクタタイプ: SMAのオス・コネクタ
動作温度: -20℃〜+60℃ 保管温度: -40℃〜+80℃
ケーブルタイプ: /
ハイライト:

2.4GHz fiberglass base antenna

,

5dBi SMA connector antenna

,

fiberglass base station antenna with SMA

2.4G 5dBi Waterproof Omni UHF/VHF Fiberglass Antenna
2.4G 5dBi waterproof Omni UHF/VHF fiberglass antenna
2.4GHz 5dBi Fiberglass Base Antenna with SMA Connector 0 2.4GHz 5dBi Fiberglass Base Antenna with SMA Connector 1 2.4GHz 5dBi Fiberglass Base Antenna with SMA Connector 2
Electrical Characteristics
Frequency 2.4 GHz
V.S.W.R <= 2.0
Antenna Gain 5 dBi
Polarization Linear
Impedance 50 Ohm
Material & Mechanical Characteristics
Material of Radiator Brass
Material of Plastic Fiberglass
Cable Type /
Connector Type SMA male connector
Environmental
Operation Temperature -20˚C ~ +60˚C
Storage Temperature -40˚C ~ +80˚C
2.4GHz 5dBi Fiberglass Base Antenna with SMA Connector 3 2.4GHz 5dBi Fiberglass Base Antenna with SMA Connector 4
Teng Xiang electronics is an experienced manufacturer of RF products. Especially in the range of Antennas, RF coaxial cable assemblies, RF connectors. We aim to deliver innovative technologies and solutions to meet the rapidly evolving wireless industry catering to 5G, 4G (LTE), 3G, 2G, WiFi, ISM, IoT solutions, Iridium communications, GPS/GLONASS/BeiDou frequencies, and more. With a focus on telecommunications, Security, Automotive, Medical, IoT, and other markets. We provide a customized solution according to customer's requirements. With our in-house design, R&D, and manufacturing, the team is always on hand to develop a high-quality product for customers. By providing our clients and customers with high-quality products and exceptional customer service, we focus on all our customers and provide them with the exact same excellent service and considerations.
2.4GHz 5dBi Fiberglass Base Antenna with SMA Connector 5 2.4GHz 5dBi Fiberglass Base Antenna with SMA Connector 6 2.4GHz 5dBi Fiberglass Base Antenna with SMA Connector 7 2.4GHz 5dBi Fiberglass Base Antenna with SMA Connector 8 2.4GHz 5dBi Fiberglass Base Antenna with SMA Connector 9 2.4GHz 5dBi Fiberglass Base Antenna with SMA Connector 10 2.4GHz 5dBi Fiberglass Base Antenna with SMA Connector 11
Why Choose Us?
  • Hundreds of antenna products for optional, they used for communication, IoT devices, security camera, smart home/city, automotive, medical, drone, etc.
  • We provide a customized solution according to your requirements, for antennas, coaxial cables, and plastic parts. With our in-house design, R&D, testing, and manufacturing.
  • More than 200 employees, and auto-assembly lines in the factory, no worries about the production capability.
  • By supplying our clients with high-quality products at competitive prices, we try to be all customer's partners and provides excellent services.
