| 頻度: | 868MHz | VSWR: | <= 2.0 |
|---|---|---|---|
| アンテナゲイン: | 2 dBi | 偏光: | リニア |
| インピーダンス: | 50オーム | ラジエーター材料: | 真鍮 |
| プラスチック材料: | グラスファイバー | コネクタタイプ: | SMAのオス・コネクタ |
| 動作温度: | -20℃〜+60℃ | 保管温度: | -40℃〜+80℃ |
| 寸法: | 18*230mm | 正味重量: | 33.1g |
| 構造フォーム: | 表面アンテナ | ベースアンテナ: | 高利得アンテナ |
| VSWR範囲: | 1.5~2 | ||

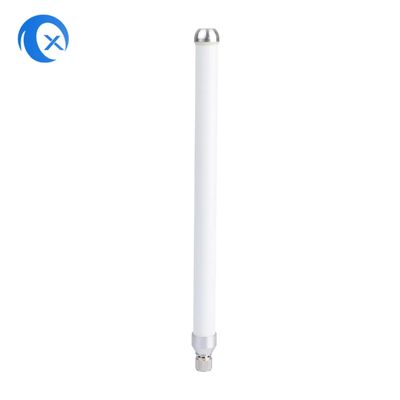

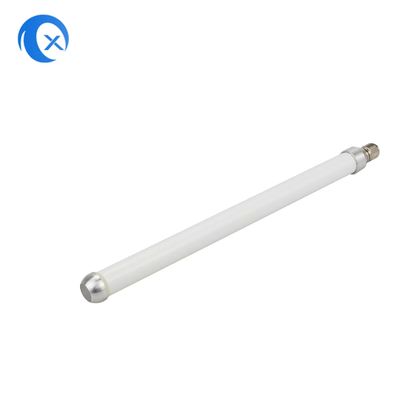

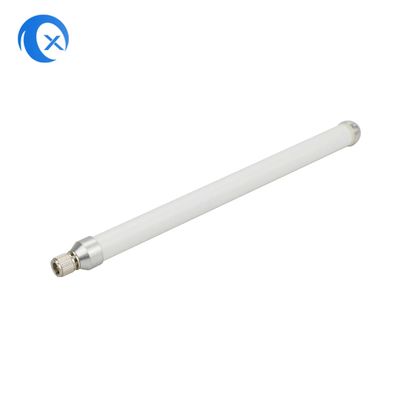

| ハイライト: | 868MHz fiberglass antenna with SMA connector,2dBi fiberglass base station antenna,18x230mm fiberglass antenna with warranty |
||
| Frequency | 868 MHz |
| V.S.W.R | <= 2.0 |
| Antenna Gain | 2 dBi |
| Polarization | Linear |
| Impedance | 50 Ohm |
| Material of Radiator | Brass |
| Material of Plastic | Fiberglass |

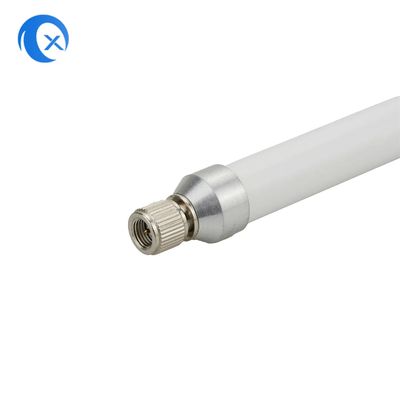

| Connector Type | SMA male connector |
| Operation Temperature | -20˚C ~ +60˚C |
| Storage Temperature | -40˚C ~ +80˚C |
Teng Xiang Electronics is an experienced manufacturer of RF products, specializing in antennas, RF coaxial cable assemblies, and RF connectors. We deliver innovative technologies and solutions for the rapidly evolving wireless industry, serving 5G, 4G (LTE), 3G, 2G, WiFi, ISM, IoT solutions, Iridium communications, and GPS/GLONASS/BeiDou frequencies.
With focus on telecommunications, security, automotive, medical, and IoT markets, we provide customized solutions according to customer requirements. Our in-house design, R&D, and manufacturing capabilities ensure high-quality products.
We are committed to providing all customers with high-quality products, competitive prices, and exceptional service.
