| モデル番号: | TX-HG003 | 構造形態: | 表面アンテナ |
|---|---|---|---|
| VSWR: | 1.5~2 | 得: | 1 dBi |
| 寸法: | 18*230mm | 正味重量: | 33.1g |
| 頻度: | 433のMHz | V.S.W.R: | <= 2.0 |
| アンテナゲイン: | 1 dBi | 偏光: | リニア |
| インピーダンス: | 50オーム | ラジエーター材料: | 真鍮 |
| プラスチック材料: | グラスファイバー | コネクタタイプ: | SMAのオス・コネクタ |
| 動作温度: | -20℃〜+60℃ | 保管温度: | -40℃〜+80℃ |

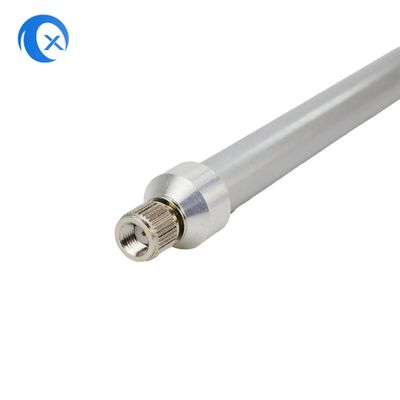

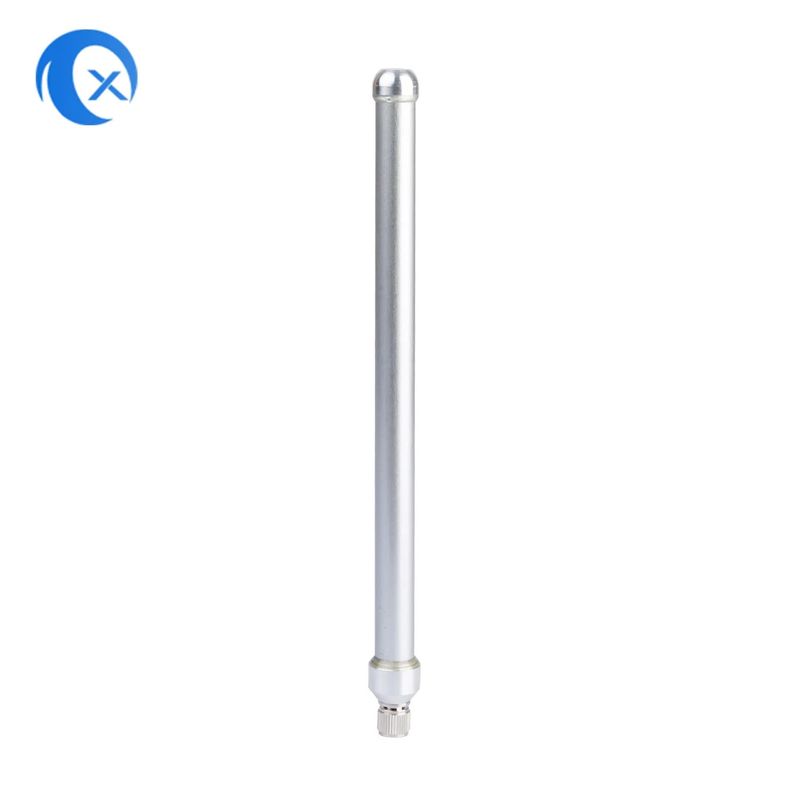

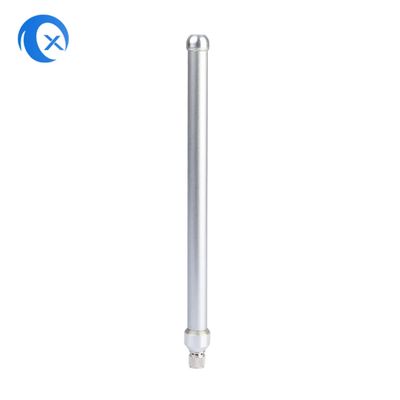

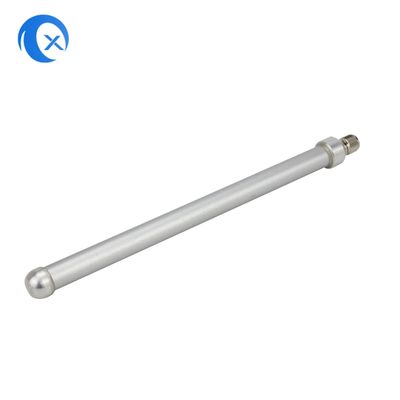

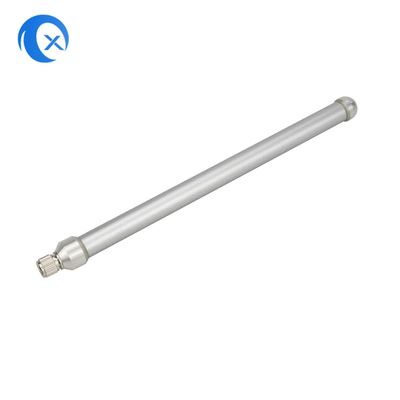

| ハイライト: | 433MHz fiberglass base station antenna,1dBi gain fiberglass antenna,18x230mm base station antenna |
||
| Frequency | 433 MHz |
|---|---|
| V.S.W.R | <= 2.0 |
| Antenna Gain | 1 dBi |
| Polarization | Linear |
| Impedance | 50 Ohm |
| Material of Radiator | Brass |
|---|---|
| Material of Plastic | Fiberglass |
| Connector Type | SMA male connector |
| Operation Temperature | -20˚C ~ +60˚C |
|---|---|
| Storage Temperature | -40˚C ~ +80˚C |
Teng Xiang Electronics is an experienced manufacturer of RF products, specializing in antennas, RF coaxial cable assemblies, and RF connectors. We deliver innovative technologies and solutions for the rapidly evolving wireless industry, including 5G, 4G (LTE), 3G, 2G, WiFi, ISM, IoT solutions, Iridium communications, and GPS/GLONASS/BeiDou frequencies.
Serving telecommunications, security, automotive, medical, and IoT markets, we provide customized solutions through in-house design, R&D, and manufacturing. Our commitment to high-quality products and exceptional customer service ensures excellent solutions for all clients.
