| モデル番号: | TX-HG032 | 頻度: | 5つのGHz |
|---|---|---|---|
| VSWR: | <= 2.0 | アンテナゲイン: | 5 DBI |
| 偏光: | リニア | インピーダンス: | 50オーム |
| ラジエーター材料: | 真鍮 | プラスチック材料: | グラスファイバー |
| ケーブルタイプ: | rg58 | コネクタタイプ: | Nのオス・コネクタ |
| 動作温度: | -20℃〜+60℃ | 保管温度: | -40℃〜+80℃ |
| 寸法: | 20*262mm | 正味重量: | 199.1g |
| 構造フォーム: | 表面アンテナ | ||

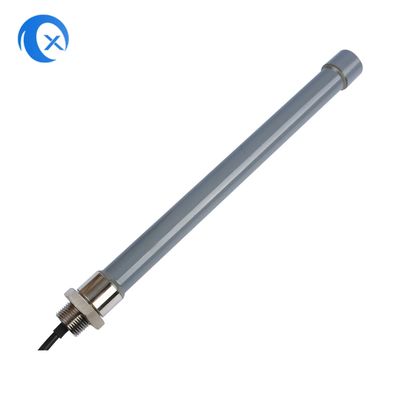

| ハイライト: | 5GHz fiberglass base station antenna,5dBi base station antenna with RG58 cable,fiberglass antenna with RG58 cable |
||
| Frequency | 5 GHz |
| V.S.W.R | <= 2.0 |
| Antenna Gain | 5 dBi |
| Polarization | Linear |
| Impedance | 50 Ohm |
| Material of Radiator | Brass |
| Material of Plastic | Fiberglass |

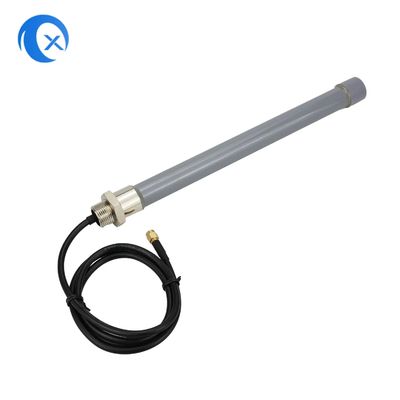

| Cable Type | RG58 or by request |

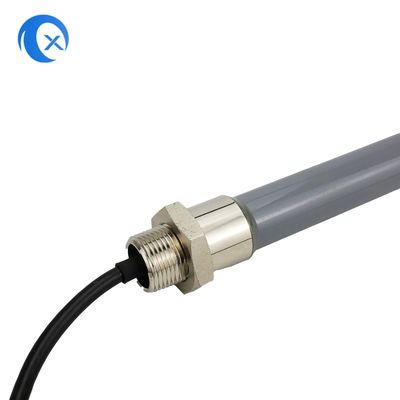

| Connector Type | N male connector |
| Operation Temperature | -20˚C to +60˚C |
| Storage Temperature | -40˚C to +80˚C |
We are an experienced manufacturer specializing in RF products including antennas, RF coaxial cable assemblies, and RF connectors. Our solutions support 5G, 4G (LTE), 3G, 2G, WiFi, ISM, IoT, Iridium communications, and GPS/GLONASS/BeiDou applications.
With expertise in telecommunications, security, automotive, medical, and IoT markets, we offer customized solutions through our in-house design, R&D, and manufacturing capabilities. Our commitment to quality and customer service ensures exceptional products and support for all clients.
